Avator™ 75e and 110e outboards can be configured with up to four 5400Wh batteries, all connected through the 5400 Power Center for seamless integration and convenient single-point charging.

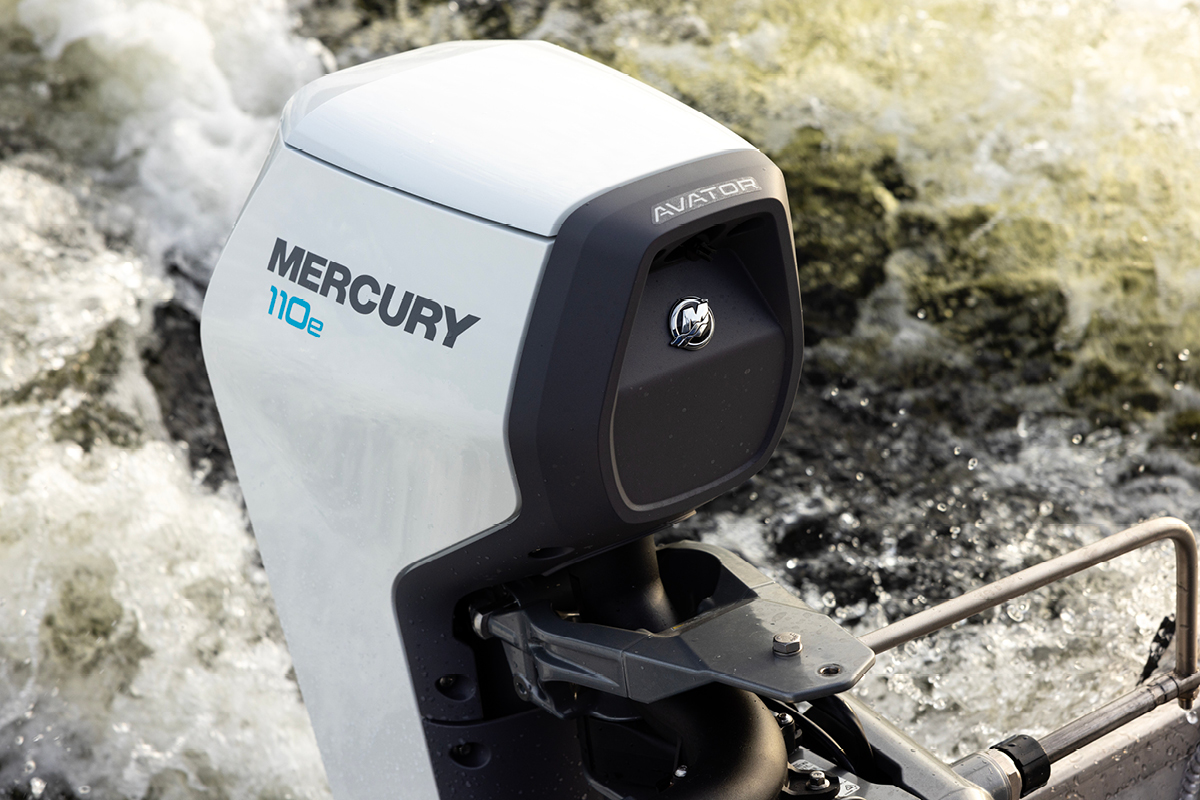

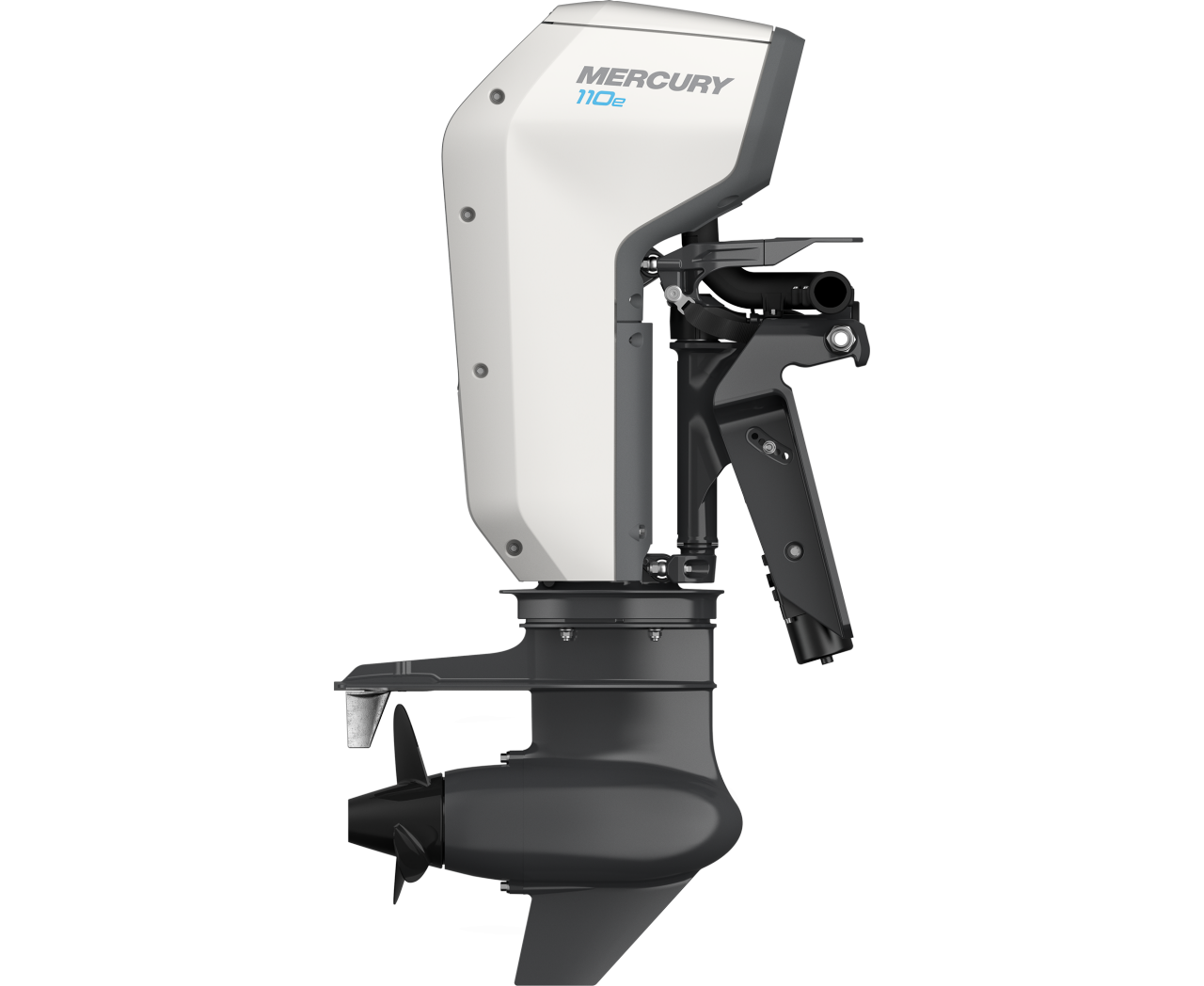

Avator 75-110e
Electric Outbaord
Whether you’re relaxing in the sun or chasing the fish across your favorite lake, the enhanced power of the Avator™ 75e and 110e outboards gives you the freedom to expand the horizon and amplify your adventure.
Intuitive, Innovative Features
Modular Batteries
Tiller Handle
The available tiller for the Avator 75e allows boaters to take control with confidence. The handle adjusts up and down for comfortable steering from any position, incorporates an integrated tilt switch and digital shift controls, and folds up when not in use.
Power Tilt
The power tilt system makes it easy to dial in performance or raise the outboard in shallow water. You can adjust tilt effortlessly for maximum efficiency and performance.
5400 Power Center
The 5400 Power Center is an integrated hub that distributes power from the battery bank throughout the system. It can also charge up to four connected batteries simultaneously from a single charging port.
Digital Controls
For console boats, digital remote controls deliver instant throttle response, confident shifting, and power tilt control with zero hesitation for easy, safe piloting. Controls are available in three styles to fit a range of center- and side-console mounting positions.
Strong Transverse Flux Motor
Industry-first transverse flux motor technology delivers immediate torque and reliable, efficient power. The motor turns a high-thrust three-blade aluminum prop that further optimizes battery life.
Avator Performance Data
Smooth & Quiet
Smooth, quiet electric power will get you where you’re going without interrupting the conversation.
Superior Efficiency
From the transverse flux motor to the lithium-ion batteries, we’ve optimized every aspect of the Avator propulsion system to deliver more efficient overall performance.
More Power, Bigger Adventures

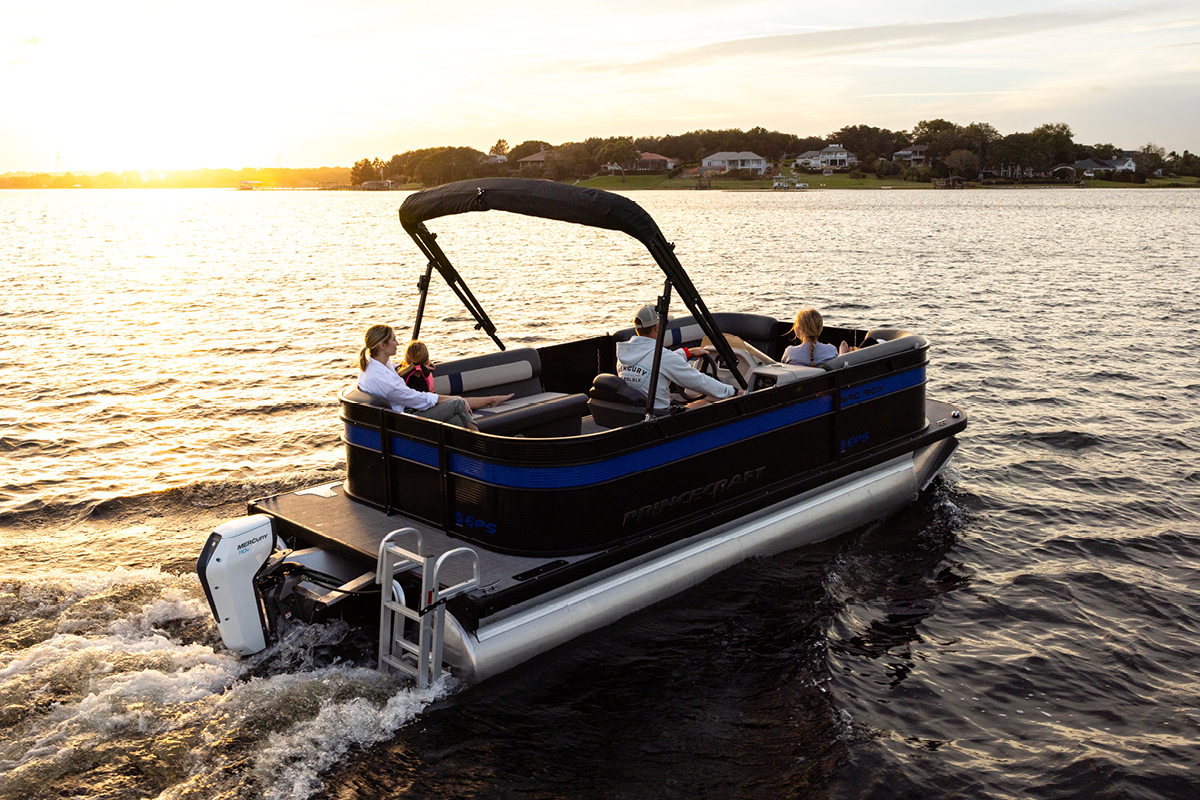

The power of the Avator 75e and 110e outboards make them ideal for use on larger and heavier vessels, including medium-sized aluminum fishing boats and pontoons.
Avator Advantage
Smooth Performance
Vibration-isolating components help ensure your ride is quiet and smooth, keeping you better connected with nature.
Sustainability
Avator outboards transform the boating experience by making boating possible with no exhaust fumes and zero direct emissions.
Corrosion Resistance
Every Avator outboard is engineered with proven corrosion-preventive materials and coatings, so you can boat confidently in freshwater or saltwater.
Easy Storage and Maintenance
With no fuel, no fumes and minimal maintenance, an Avator outboard is simple to own so you can spend your time on the water.
Specifications
Name
Avator 75e
Avator 110e
Battery IP Rating
IP67
IP67
Battery Weight
93 lbs
93 lbs
Battery
5376Wh - LiFePO4
5376Wh - LiFePO4

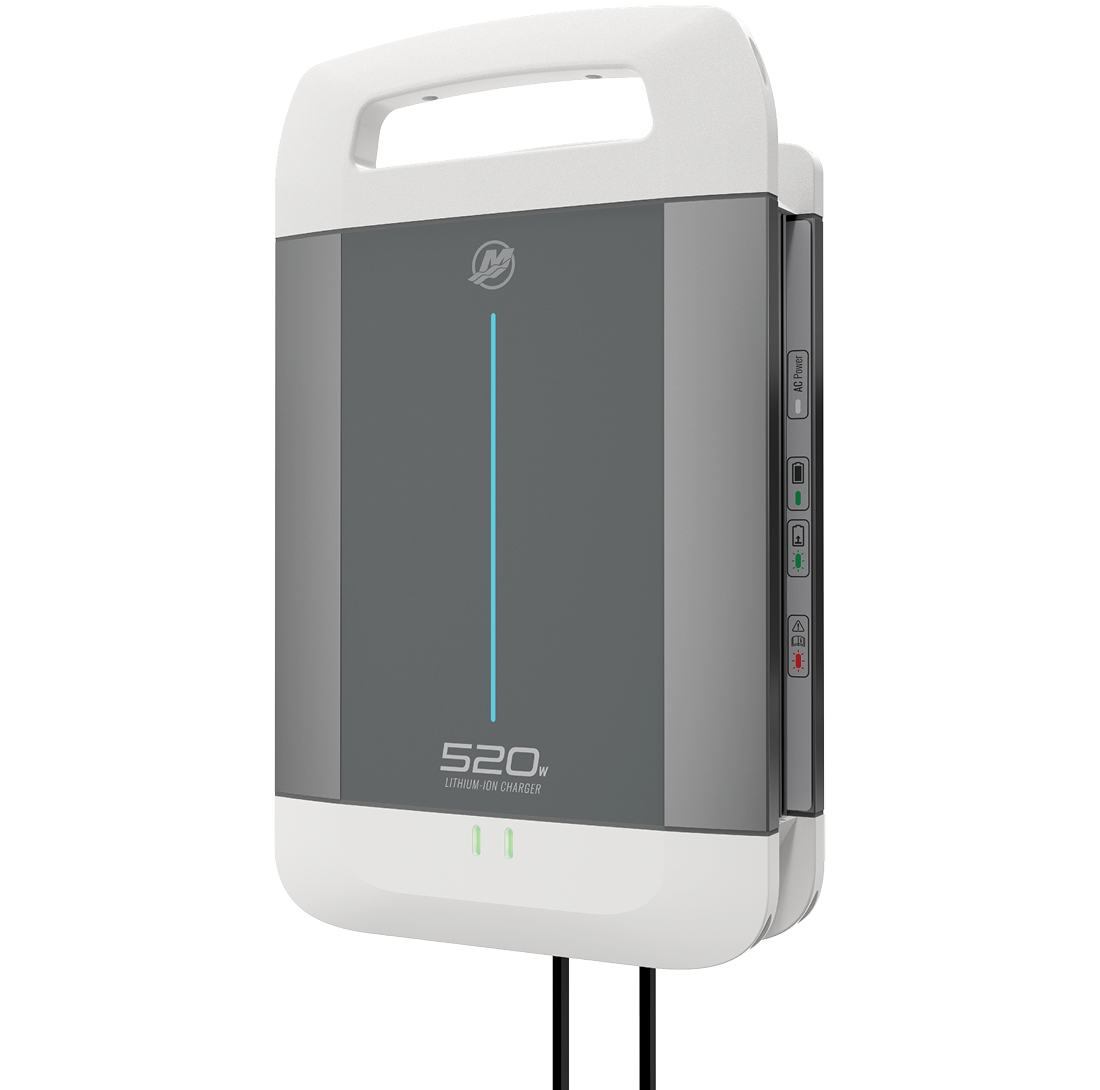

Charger Options
520W; 1050W
520W; 1050W
Input Power
8.6kW
12.8kW
Rated Prop Shaft Power
7500W
11000W
Rated Voltage
48V
48V
Shaft Length
15 in / 381 mm; 20 in / 508 mm; 25 in / 635 mm
20 in / 508 mm; 25 in / 635 mm

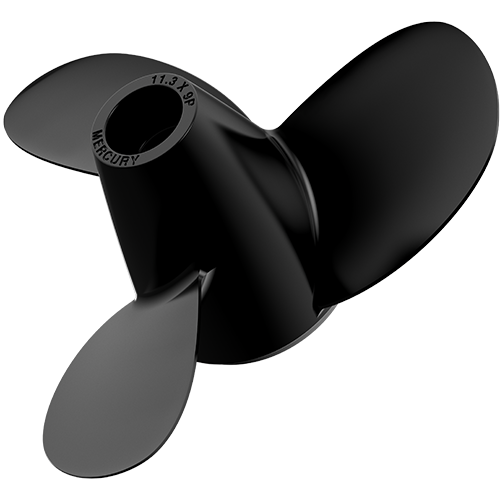

Propeller Options
8P; 9P; 10.5P
8P; 9P; 10.5P
Steering
RC / Tiller
RC
Total Drive Weight
120 lbs
124 lbs

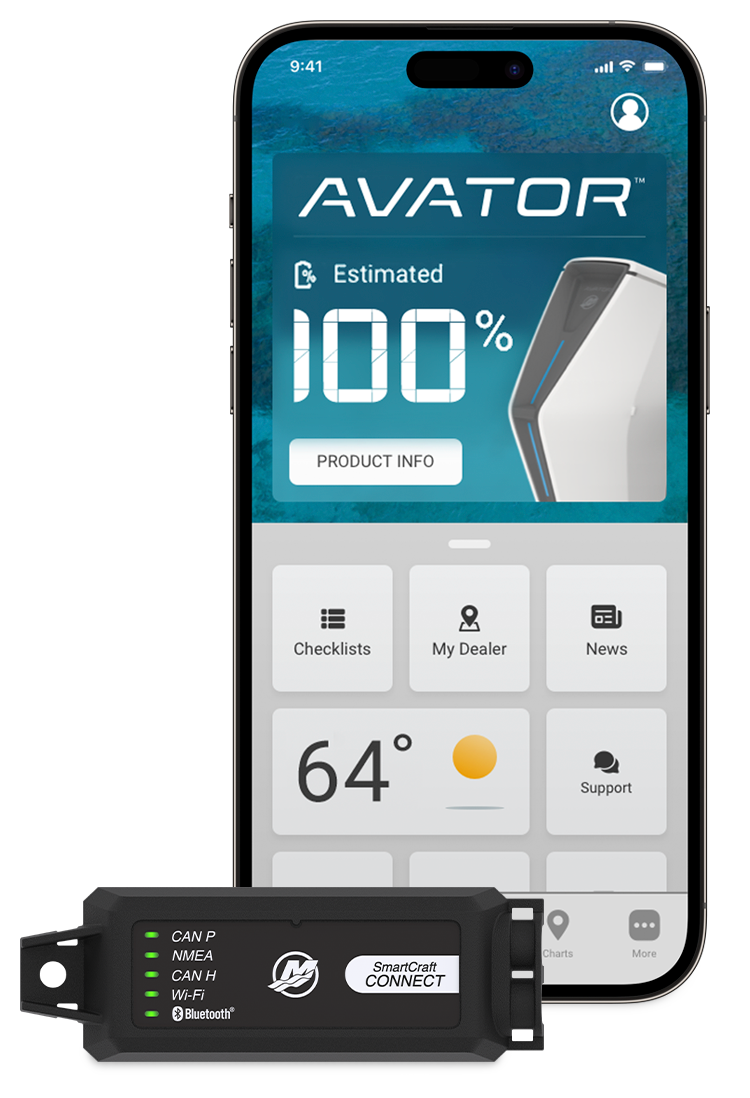

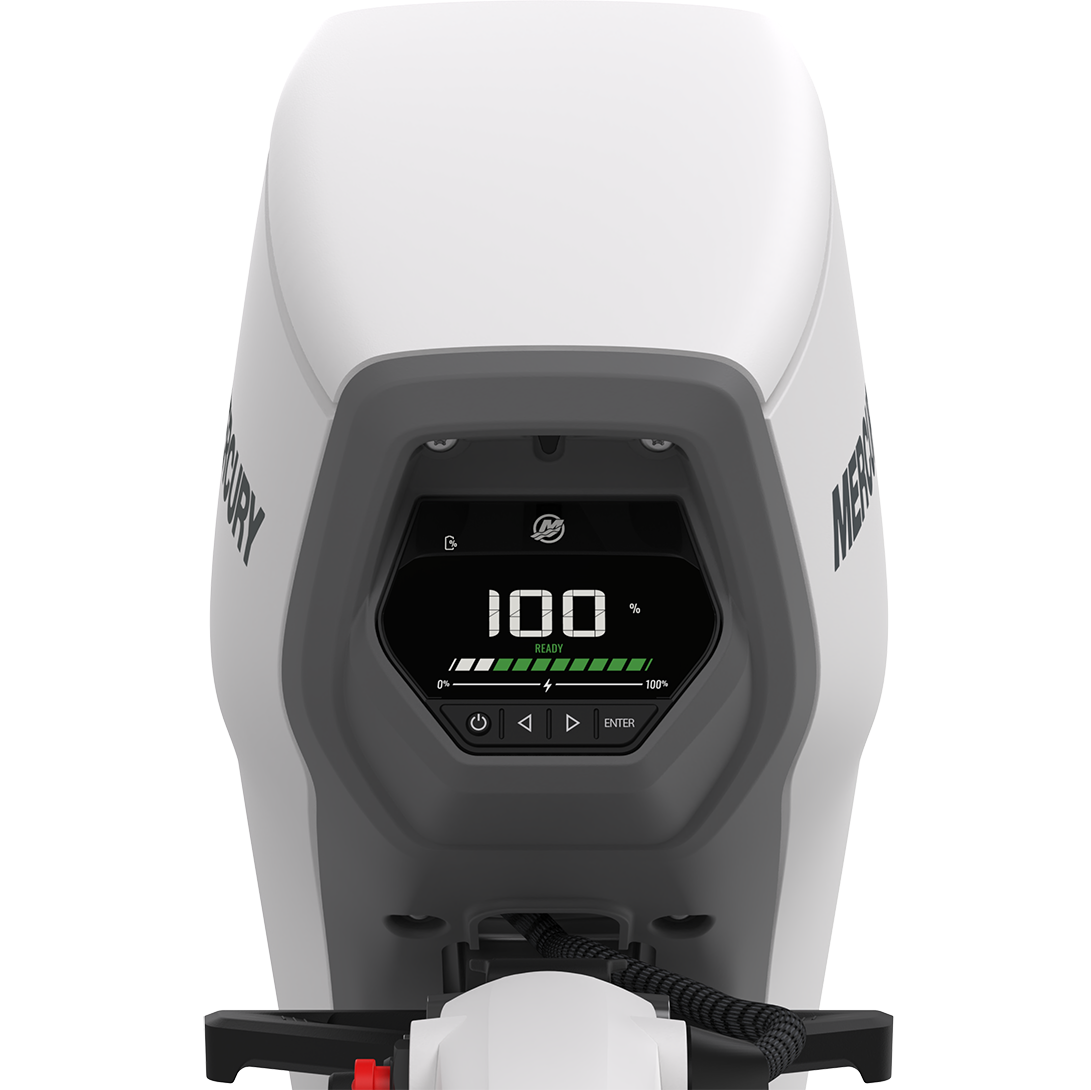

Avator Accessories and Connected Devices
Everything you need to enhance your Avator-powered adventures.
Warranty and Maintenance
Sustainability
Avator outboards make boating possible with no exhaust fumes and zero direct emissions. And each outboard is crafted with many components that are recyclable or reusable.
Backed by Mercury
Avator outboards are built to the same high standards and backed by the same network of authorized dealers and service professionals that have made Mercury an industry leader.
Avator Outboard and Battery Registration
Your Avator outboard and battery must be registered separately to be eligible for warranty coverage. If you purchase from a Mercury Authorized Dealer in person, your dealer will register the product. For all other purchases, you’ll need to complete the registration process.
