200R

Mighty power for fast V-hulls

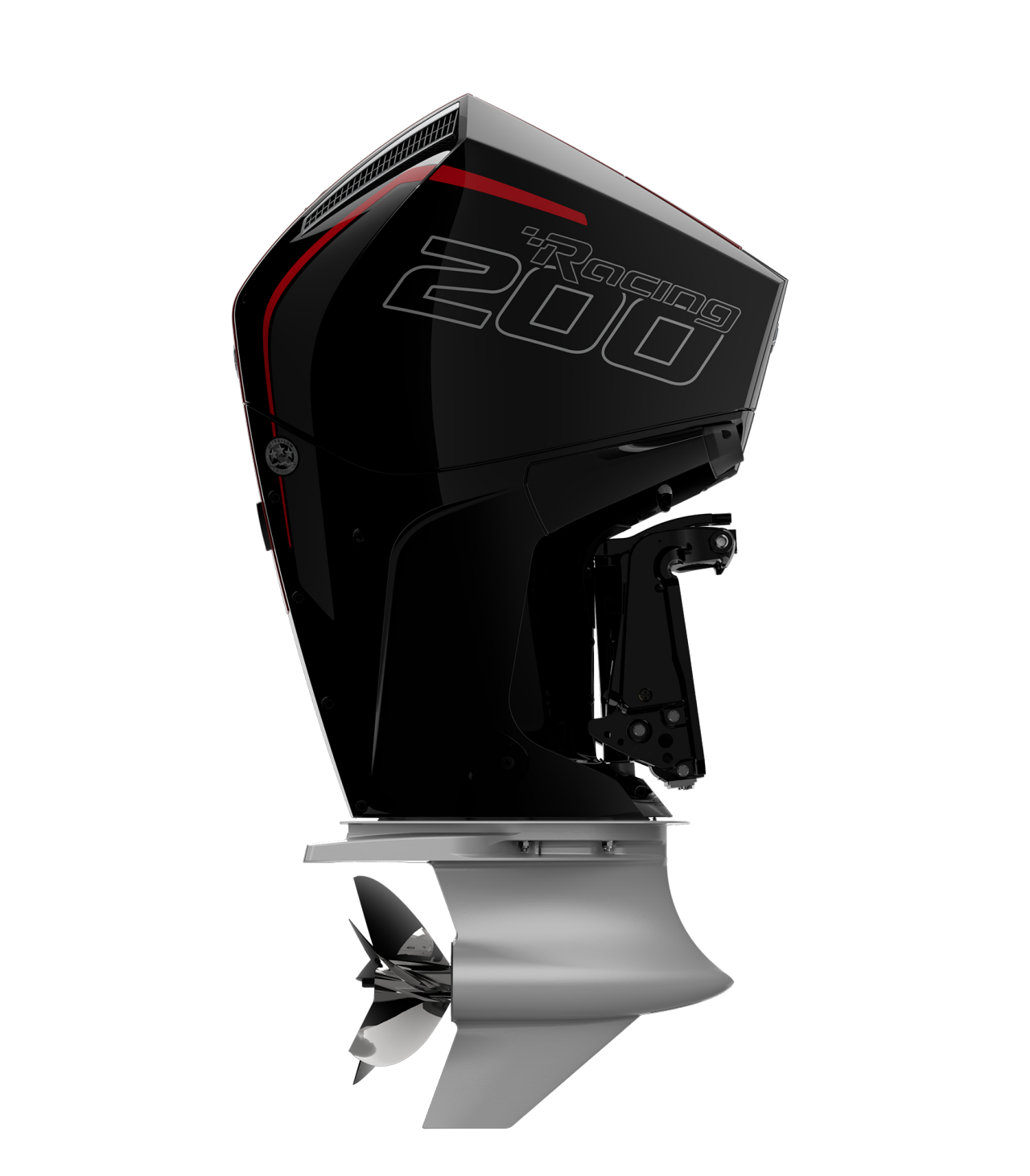

Designed specifically for lightweight, high-speed V-hull fishing and sport boats, the Mercury Racing 200R outboard provides exceptional V6 power for the go-fast crowd.

Lightweight V6 performance

The high-displacement, quad-cam design of the four-stroke 3.4L V6 powerhead generates exceptional mid-range power for quick acceleration and exciting speeds. With a 6400-rpm redline, the 200R is tuned to deliver a high-speed dose of power in a lightweight, compact package.

Digital Throttle & Shift

Digital Throttle & Shift (DTS) controls deliver smooth, quiet shifting and instant throttle response, with zero hesitation. With integrated SmartCraft® technologies and an intuitive user interface, DTS puts you in complete command of your adventures.

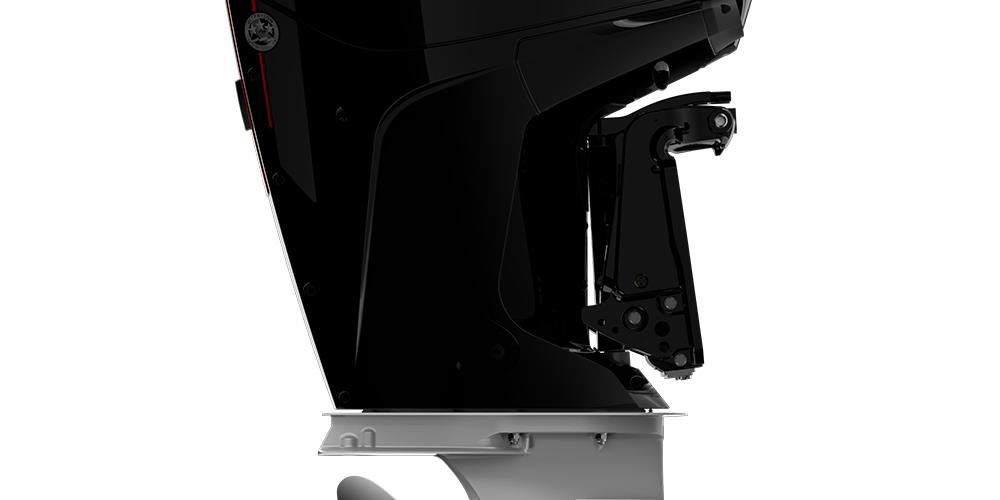

Tri-Ram CMS Midsection

Strong and rock-steady, the Mercury Racing Tri-Ram Conventional MidSection (CMS) features solid lower engine mounts and a high-durometer upper mount for enhanced stability and handling at high speeds, critical for confident control in the fastest single-engine and double-engine applications. Available in 20-inch shaft length.

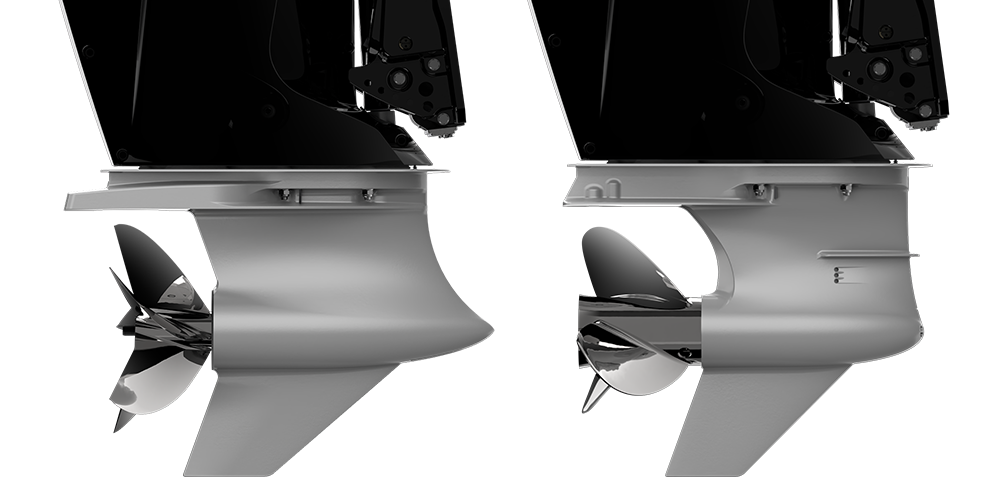

Gearcase

Two gearcase options are available for the 200R. Both feature an upgraded shift actuator to withstand heavy-duty use when running surfacing propellers.

The Torque Master gearcase is ideal for heavier boats capable of reaching up to 85 mph. It features a heavy-duty 19-spline stainless steel prop shaft and is designed to run partially surfaced to propel heavier tournament bass and multispecies fishing boats with maximum speed and control.

For boats capable of speeds greater than 85 mph, the surface-piercing design of the Sport Master gearcase features low water pick-ups and a crescent-shaped leading edge to maximise efficiency and speed. The available cambered skeg counteracts prop torque on single-engine installations for improved performance and handling.

Specifications

Name

200R Torque Master

200R Sport Master

Shaft length

L: 20" / 508mm

L: 20" / 508mm

Full throttle rpm

5800-6400 rpm

5800-6400 rpm

Mounts

Hard rubber upper mount / solid lower mounts

Hard rubber upper mount / solid lower mounts

MidSection

Conventional MidSection (CMS)

Conventional MidSection (CMS)

Engine type

V6 (24-valve DOHC) naturally aspirated four stroke

V6 (24-valve DOHC) naturally aspirated four stroke

Fuel requirement

Unleaded Regular 87 octane minimum or 91 RON 10% ethanol maximum

Unleaded Regular 87 octane minimum or 91 RON 10% ethanol maximum

Charging system

85 amp (1071 watt) with idle charge

85 amp (1071 watt) with idle charge

Throttle & Shift controls

Digital Throttle & Shift (DTS)

Digital Throttle & Shift (DTS)

Gearcase

Torque Master

Sport Master

Gear ratio

1.75:1

1.75:1

Dry weight (lbs / kg)

L: 469 lbs / 213 kg

L: 489 lbs / 222 kg
